From: github.com/openscad/openscad/blob/master/examples/example020.scad

/////////////////////////////////////////////////////
//////////////////// Parameters /////////////////////

helixRadius = 3;

/////////////////////////////////////////////////////
////////////////////// Modules //////////////////////

module spring(r1 = 100, r2 = helixRadius,
              h = 100, hr = 12)
{
   stepsize = 1/16;

   module segment(i1, i2)
   {
      alpha1 = i1 * 360*r2/hr;
      alpha2 = i2 * 360*r2/hr;
      len1 = sin(acos(i1*2-1))*r2;
      len2 = sin(acos(i2*2-1))*r2;

      if (len1 < 0.01)
         polygon([[cos(alpha1)*r1,sin(alpha1)*r1],
                  [cos(alpha2)*(r1-len2),
                   sin(alpha2)*(r1-len2)],
                  [cos(alpha2)*(r1+len2),
                   sin(alpha2)*(r1+len2)]]);

      if (len2 < 0.01)
         polygon([[cos(alpha1)*(r1+len1),
                   sin(alpha1)*(r1+len1)],
                  [cos(alpha1)*(r1-len1),
                   sin(alpha1)*(r1-len1)],
                  [cos(alpha2)*r1, sin(alpha2)*r1]]);

      if (len1 >= 0.01 && len2 >= 0.01)
         polygon([[cos(alpha1)*(r1+len1),
                   sin(alpha1)*(r1+len1)],
                  [cos(alpha1)*(r1-len1),
                   sin(alpha1)*(r1-len1)],
                  [cos(alpha2)*(r1-len2),
                   sin(alpha2)*(r1-len2)],
                  [cos(alpha2)*(r1+len2),
                   sin(alpha2)*(r1+len2)]]);
   }

   linear_extrude(height=100,twist=180*h/hr,
                  $fn=(hr/r2)/stepsize,
                  convexity= 5)
   {
      for (i = [stepsize:stepsize:1+stepsize/2])
         segment(i-stepsize, min(i, 1));
   }
}

/////////////////////////////////////////////////////
/////////////////////// Main ////////////////////////

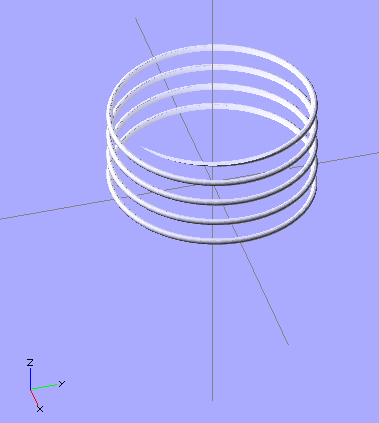

spring();
