Hodgepodge

Project #1

Create a simple turtle graphics program. Below are a possible layout and turtle design.

Test by drawing shapes

triangle
square
5 pointed star
hexagram
octagon

Project #2

Create a simple game. Create a maze(s) the user must program a path through the maze, or any other game you can think of that requires drawing lines.

Possible Design Hint

Layers can determine what will be displayed on top of other element. For example, the turtle sprite will always be displayed on top of all other layers.

Layer	Use/Description
Layer3	top most layer used for the turtle sprite
Layer2	used for the lines drawn by the turtle
Layer1	used for the grid
Layer0	bottom most layer used for background images, mazes, background color, ...

Note: Layers are independent and can be displayed or removed without effecting the other layers.

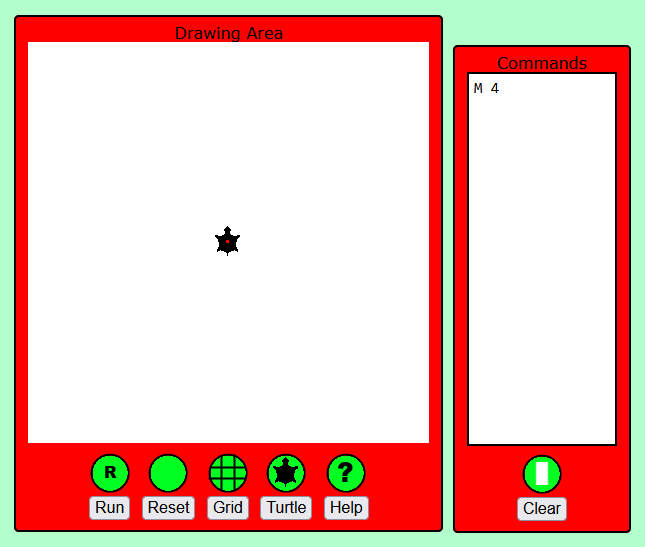

Possible Layout Example

Little Turtle is designed to build a command sequence a few commands at a time.

Enter one or two commands.
Run the commands.
Correct the commands or add new commands.
Reset the "Drawing Area".
Got to step 2.

Possible Commands

Command	Example	Description
H	H	home, center the turtle in the drawing area point in direction 0
M	M 5	move forward ? steps
L	L 2	turn left (0-6)
R	R 6	turn right (0-6)
U	U	pen up (stop drawing)
D	D	pen down (start drawing)
C	C 3	pen color (1-6)
S	S 2	pen size (1-9)

Note:

- Commands are case insensitive.
- Commands are a single letter usually followed by a space and number.
- A turn value of 0 reset the direction to 0. Direction 0 is a special direction. It points to the top of the drawing area. All other directions are relative to the move direction
- Unknown commands or values stop execution.
- The move step size is fixed and defined in the app configuration.

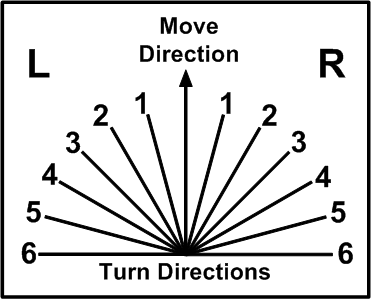

Possible Turn Directions (1-6)

image missing
