If you want to calculate the perimeter (circumference) of an ellipse, you must use an approximation.

Project #1

The perimeter of an ellipse is very difficult to calculate.

In this problem use the ellipse perimeter infinite series equation. For more information about the equation click HERE .

Show the results of using

1. term 0
2. terms 0 to 1
3. terms 0 to 2
4. terms 0 to 3
5. terms 0 to 4
6. terms 0 to 5
7. terms 0 to 6
8. terms 0 to 7

Create an interactive program to calculate (approximate) the perimeter of an ellipse.

1. ask the user for input
   What should the user be ask to input?
   • major and minor axis
   • semi-major and semi-minor axis
   • the eccentricity
   • coordinates
   • bounding box
   • ...
2. calculate the ellipse's perimeter
3. display pertinent information
4. loop

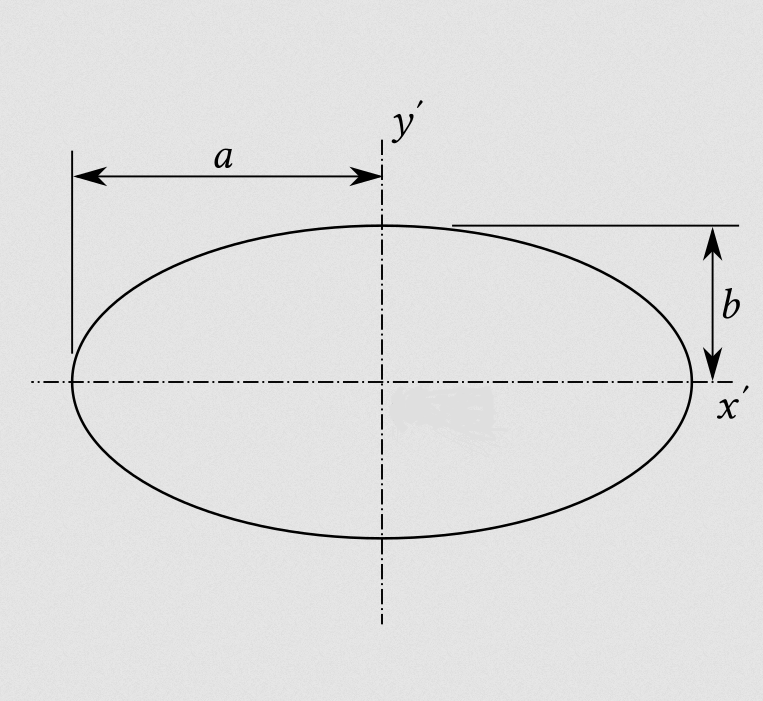

Image From: commons.wikimedia.org

Note:

• The center of an ellipse is the midpoint of both the major and minor axes.
• The semi-major (a) and semi-minor (b) axes of an ellipse are half the length of the major and minor axes.

Project #2

Use graphics.py. It is a simple graphics library. Click HERE for more information. (download, install, documentation, ...)

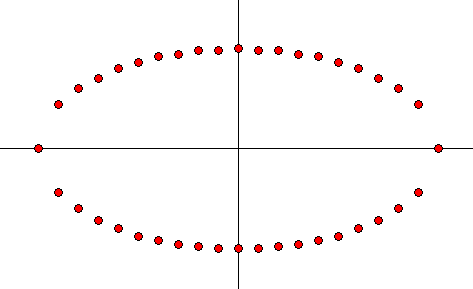

Recreate project #1, but instead draw the ellipse using the data the user entered. (Ellipse centered at the origin 0,0) For more information click HERE .

Note:

• draw points on the ellipse perimeter (not lines)
• points evenly spaced along the X axis

Project #3

Recreate project #2, but center the ellipse at 100,200. For more information click HERE .

Project #4

Recreate project #2, but allow the user to specify an angle for the major axis (above or below the X axis). (i.e. Draw the ellipse at a "tilt" angle centered at the origin 0,0.) For more information click HERE .

Project #5

Combine project #3 and Project #4. (Use a transformation matrix?) For more information click HERE .

Project #6

Create an interactive program that

1. ask the user for the semi-axes of an ellipse
2. display the size of the
   • axes
   • perimeter
   • area
3. loop

Project #7

Create an interactive program that

1. ask the user for the semi-axes of an ellipsoid
2. display the size of the
   • axes
   • surface
   • volume
3. loop
